You will find here some photos of the DishStirling, click on the thumbnail to display a bigger picture. The image have been undersampled to enhance the speed download.

Miscellaneous photos of the DishStirling

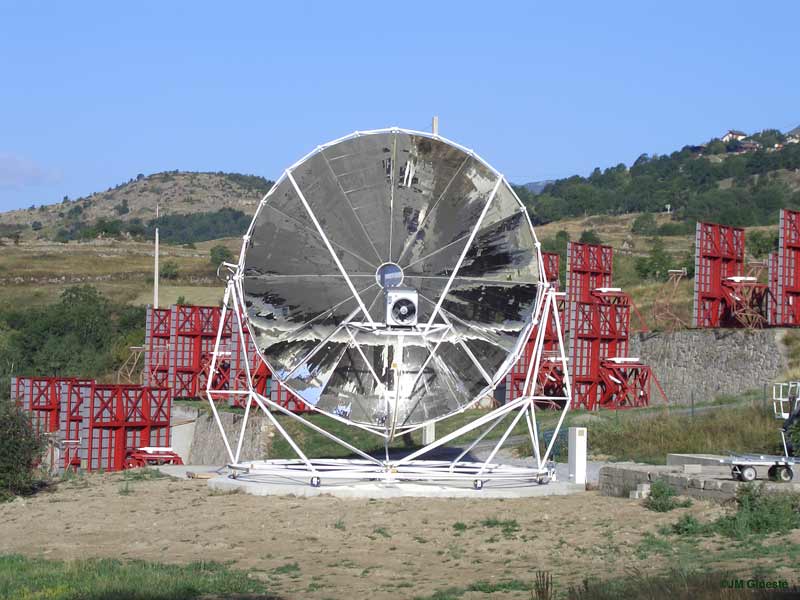

The dish seen from its face, with at its focus the Stirling engine electric generator. Behind, part of the field of the grand furnace's heliostats.

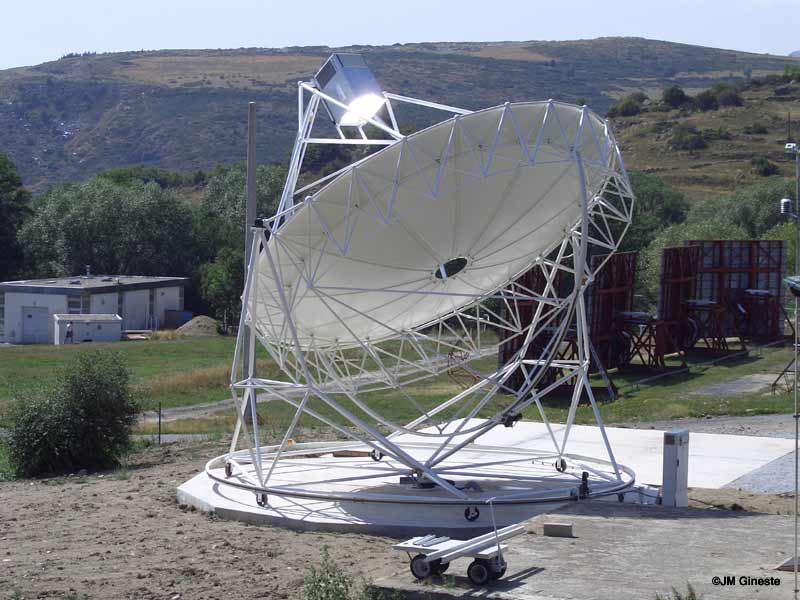

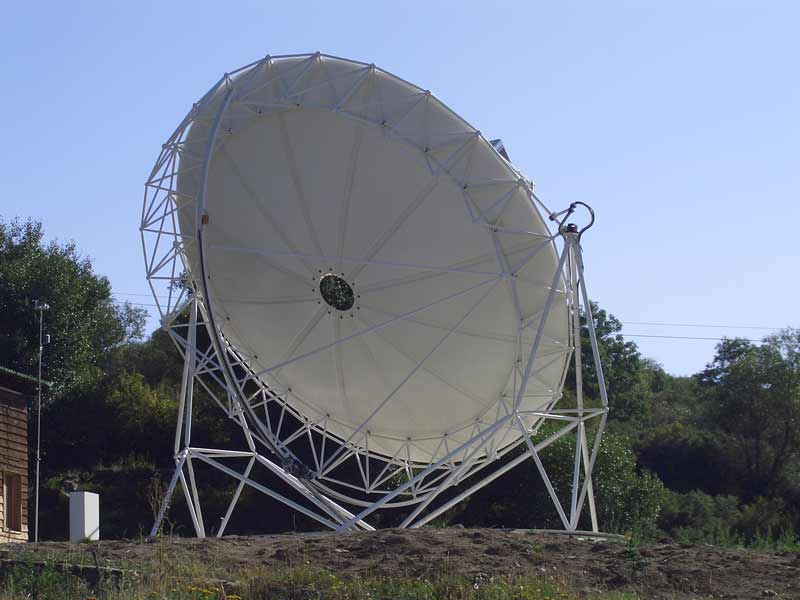

Backside view of the dish.

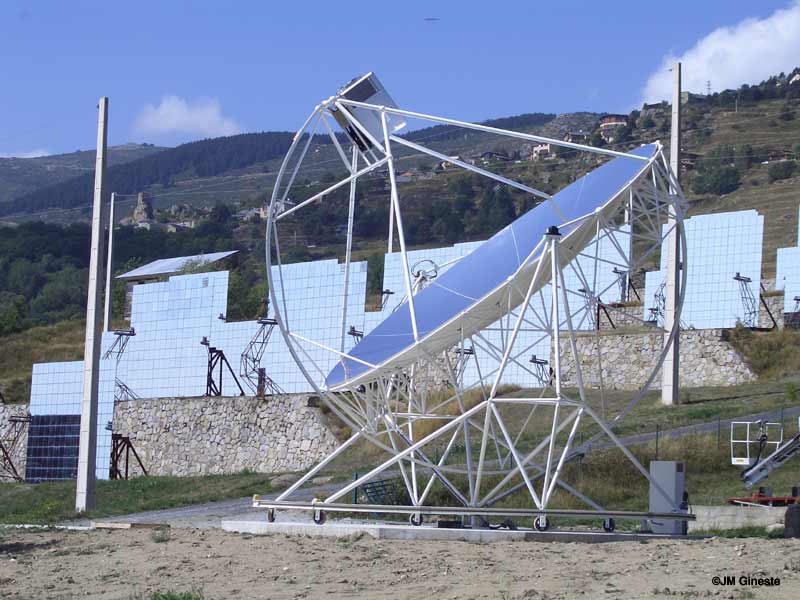

The dish concentrates the solar ray onto the thermal receiver of the Stirling engine. Behind, part of the field of the grand furnace's heliostats.

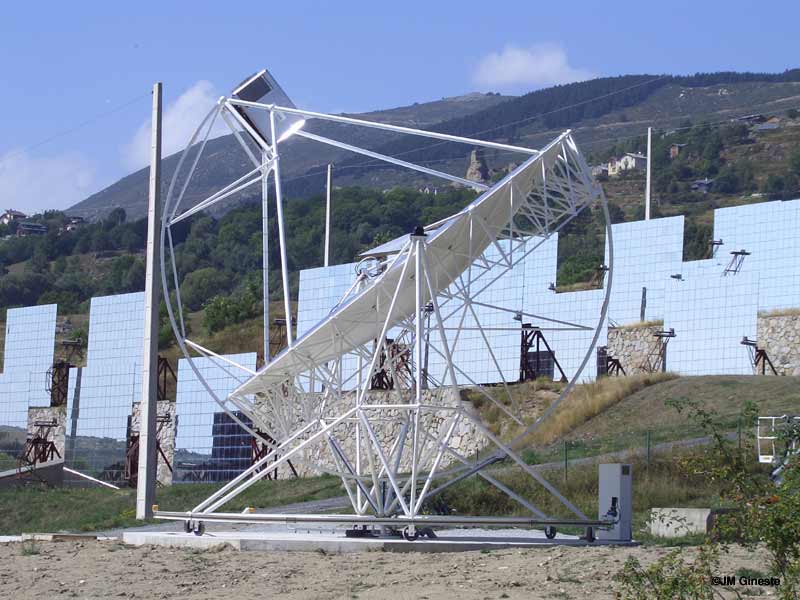

The dish concentrates the solar ray onto the thermal receiver of the Stirling engine. Behind, part of the field of the grand furnace's heliostats.

The dish concentrates the solar ray onto the thermal receiver of the Stirling engine. Behind, part of the field of the grand furnace's heliostats.

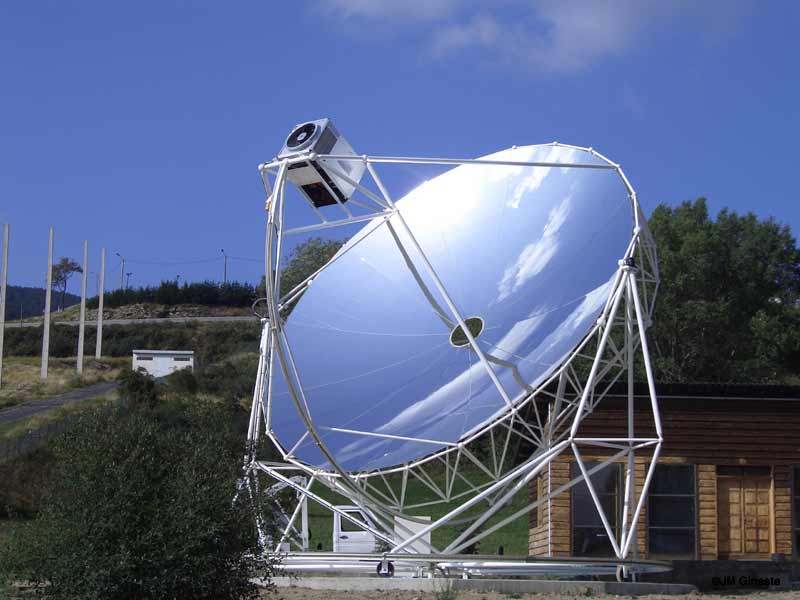

Orientation at the end of the afternoon in summer.

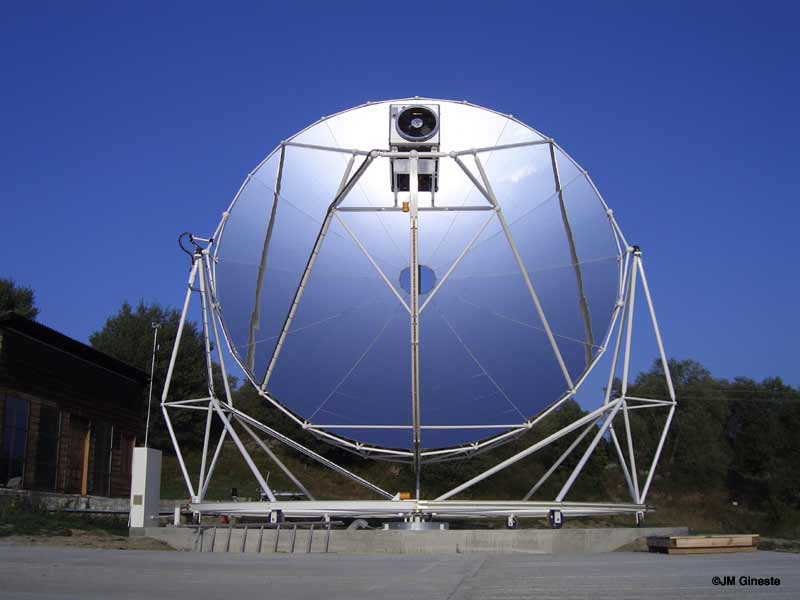

Frontside view.

The production tool and the research tool...

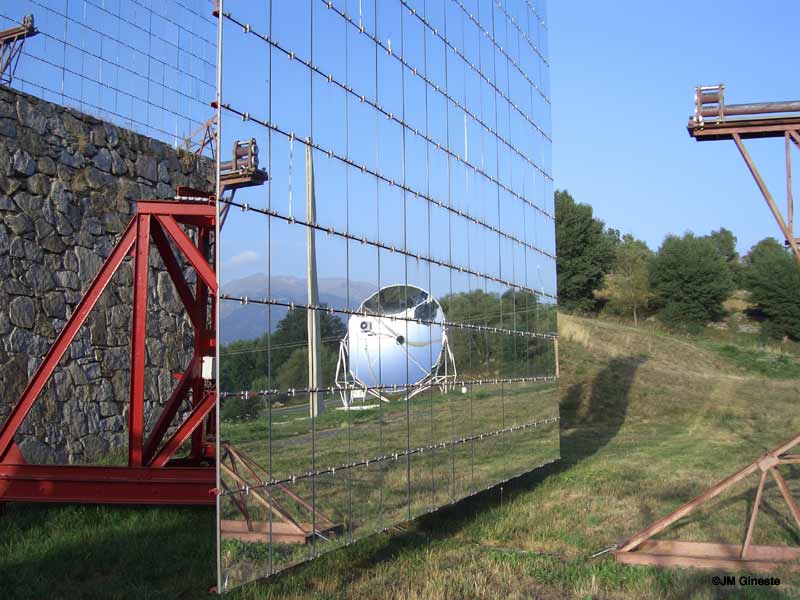

"Artistic view": view in one of the Big Furnace's heliostat.
